MessagePack-CSharp

发表于 2025-06-28

MessagePack 是一种高效的二进制序列化格式。它允许你在像JSON这样的多种语言之间交换数据。但它更快,更小。小整数被编码成单个字节,典型的短字符串除了字符串本身外,只需要一个额外的字节。
MessagePack-CSharp是MessagePack的C#语言实现，它比MsgPack-Cli快10倍，支持LZ4压缩。本文将探索用MessagePack替代.net System.Text.Json，提高API效率。

基本用法

在项目添加Messagepack
1
Install-Package MessagePack

创建测试类

[MessagePackObject]
public class MyClass2
{

    [Key(2)]//速度更快,序列化后数组更小
    public int testInt { get; set; }

    [Key(1)]
    public double[] testArray { get; set; }

    [Key(0)]
    public string testStr { get; set; }
}

[MessagePackObject]
public class MyClass
{
    [Key("age")]//html object友好
    public int Age { get; set; }

    [Key("firstName")]
    public string FirstName { get; set; }

    [Key("lastName")]
    public string LastName { get; set; }

    // All fields or properties that should not be serialized must be annotated with [IgnoreMember].
    [IgnoreMember]
    public string FullName { get { return FirstName + LastName; } }
}

说明:MessagePack序列化的对象的每一个属性都需要有Key属性进行约束。Key可以是int或者string。其中int速度更快，序列化后的二进制数组大小也会相对string更小。
string序列化后数组虽然更大，但在前端html里反序列化成object后更方便的使用。

序列化及反序列化

using MessagePack;

static void Main(string[] args)
{
    MyClass mc1 = new MyClass() { Age = 77, FirstName = "ddd", LastName = "aaa" };
    byte[] bytes = MessagePackSerializer.Serialize(mc1);//序列化
    var obj = MessagePackSerializer.Deserialize<MyClass>(bytes);//反序列化
    MyClass2 mc2 = new MyClass2()
    {
        testArray = new double[] { 123.456, 2.2345, 3.31357, 4, 5.5, 6.6, 7.7,8,9,10,11,2 },
        testInt = 12345,
        testStr = "asdfxzcbv",
    };
    bytes = MessagePackSerializer.Serialize(mc2);//序列化
    var obj2=MessagePackSerializer.Deserialize<MyClass2>(bytes);//反序列化
    Console.WriteLine("Hello, World!");
}

服务端用MessagePack替代System.Text.Json

新建Asp.Net Core Web应用

Nuget添加MessagePack和MessagePack.AspNetCoreMvcFormatter

1 2	Install-Package MessagePack Install-Package MessagePack.AspNetCoreMvcFormatter

修改Program.cs，添加MessagePack序列化控制器支持和跨域的支持

using MessagePack.AspNetCoreMvcFormatter;
using MessagePack;
......
// 添加控制器支持
builder.Services.AddControllers(options =>
{
    // 添加 MessagePack 输出格式化器
    options.OutputFormatters.Add(new MessagePackOutputFormatter(MessagePackSerializerOptions.Standard));
    // 添加 MessagePack 输入格式化器
    options.InputFormatters.Add(new MessagePackInputFormatter(MessagePackSerializerOptions.Standard));
    // 设置 MessagePack 为默认内容类型
    options.ReturnHttpNotAcceptable = true; // 强制客户端接受 MessagePack
    options.FormatterMappings.SetMediaTypeMappingForFormat("msgpack", "application/x-msgpack");
}).AddControllersAsServices();
......
// 配置 MessagePack 序列化选项（例如启用压缩）
builder.Services.Configure<MessagePackSerializerOptions>(options =>
{
    options = options.WithCompression(MessagePackCompression.Lz4Block);
});
......
//配置跨域请求
builder.Services.AddCors(options =>
{
    options.AddPolicy(name: "MyPolicy",
        policy =>
        {
            policy.WithOrigins(
                    "https://localhost:5069",
                    "https://localhost:5001")
                .AllowAnyOrigin().AllowAnyHeader();
        });
});
......
app.UseCors("MyPolicy");//启用
app.MapControllers();

新建API控制器，配置接口


[Route("api/[action]")]
[ApiController]
public class TestAPIController : ControllerBase
{
    MyClass mc = new MyClass
    {
        Age = 99,
        FirstName = "hoge",
        LastName = "huga",
    };

    //[HttpGet]
    //[Consumes("application/x-msgpack")]
    public MyClass  GetObj4()
    {
        return mc;
    }

    public MyClass2 GetObj3()
    {
        MyClass2 mc2 = new MyClass2() { testArray = new double[] { 1, 2, 3, 4, 5, 6.6, 7, 8.8 }, testInt = 123, testStr = "zasdfgsdd" };
        return mc2;
    }
}

启动程序，测试效果

curl -X GET "http://localhost:5208/api/getobj3" -H "Accept: application/x-msgpack" --output 3_m.txt
curl -X GET "http://localhost:5208/api/getobj4" -H "Accept: application/x-msgpack" --output 4_m.txt
curl -X GET "http://localhost:5208/api/getobj4" --output 4.txt
curl -X GET "http://localhost:5208/api/getobj3" --output 3.txt

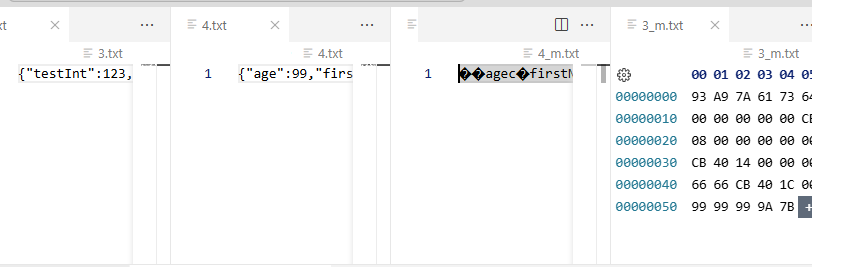

可以看到，服务端根据不同的请求返回不同的结果。

前端-Html

前端页面需要引用msgpack.min.js并且调用MessagePack.decodeAsync方法将api请求的数据进行反序列化。
关键代码如下：

Index.cshtml


@section Scripts{
    <script crossorigin src="https://unpkg.com/@@msgpack/msgpack"></script>
    <script>

        const MSGPACK_TYPE = "application/x-msgpack";
          (async () => {
          // decode()
          {
            const response = await fetch('/api/GetObj3', {
                    method: 'GET',
                    headers: {
                        'Accept': MSGPACK_TYPE // 设置接受 MessagePack 格式
                    }
                });
            const contentType = response.headers.get("content-type");
            if (contentType && contentType.startsWith(MSGPACK_TYPE) && response.body != null) {
              const object = await MessagePack.decodeAsync(response.body);
              console.log("decode:", object);
            } else {
              console.error("Something is wrong!");
            }

          }

          // decodeAsync()
          {
            const response = await fetch('/api/GetObj4', {
                    method: 'GET',
                    headers: {
                        'Accept': MSGPACK_TYPE // 设置接受 MessagePack 格式
                    }
                });
            const contentType = response.headers.get("content-type");
            if (contentType && contentType.startsWith(MSGPACK_TYPE) && response.body != null) {
              const object = MessagePack.decode(await response.arrayBuffer());
              console.log("decodeAsync:", object);
            } else {
              console.error("Something is wrong!");
            }
          }
        })()
    </script>
}

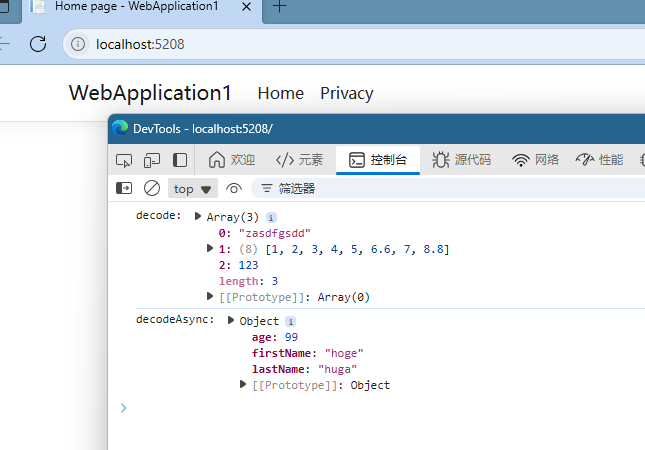

运行程序，查看浏览器控制台输出（变量键值如果是字符串，那么在html下反序列化后得到的object可以很方便的使用。反之反序列化后得到的是一个数组，用起来相对麻烦一些）。

前端-Blazor

新建”Blazor WebAssembly独立应用”，并添加MessagePack的Nuget引用。

检查Program.cs 添加HttpClient支持

Program.cs

1	builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

编辑Home.razor，添加测试代码

Home.razor


@page "/"
@using System.Net.Http.Headers
@using MessagePack
@using TestModels
@inject HttpClient Http

<PageTitle>Home</PageTitle>

<h1>Hello, world!</h1>

Welcome to your new app.

<button class="btn btn-primary" @onclick="IncrementCount">Click me</button>

<button class="btn btn-primary" @onclick="IncrementCount2">Click me2</button>


@code {
    private async Task IncrementCount()
    {

        var request = new HttpRequestMessage(HttpMethod.Get, "http://localhost:5208/api/getobj4");
        request.Headers.Accept.Add(new MediaTypeWithQualityHeaderValue("application/x-msgpack"));

        var response = await Http.SendAsync(request);
        response.EnsureSuccessStatusCode();

        var content = await response.Content.ReadAsByteArrayAsync();
        var obj = MessagePackSerializer.Deserialize<MyClass>(content, MessagePackSerializerOptions.Standard);
        Console.WriteLine(obj.Age);
    }

    private async Task IncrementCount2()
    {

        var request = new HttpRequestMessage(HttpMethod.Get, "http://localhost:5208/api/getobj3");
        request.Headers.Accept.Add(new MediaTypeWithQualityHeaderValue("application/x-msgpack"));

        var response = await Http.SendAsync(request);
        response.EnsureSuccessStatusCode();

        var content = await response.Content.ReadAsByteArrayAsync();
        var obj = MessagePackSerializer.Deserialize<MyClass2>(content, MessagePackSerializerOptions.Standard);
        Console.WriteLine(obj.testStr);
    }
}

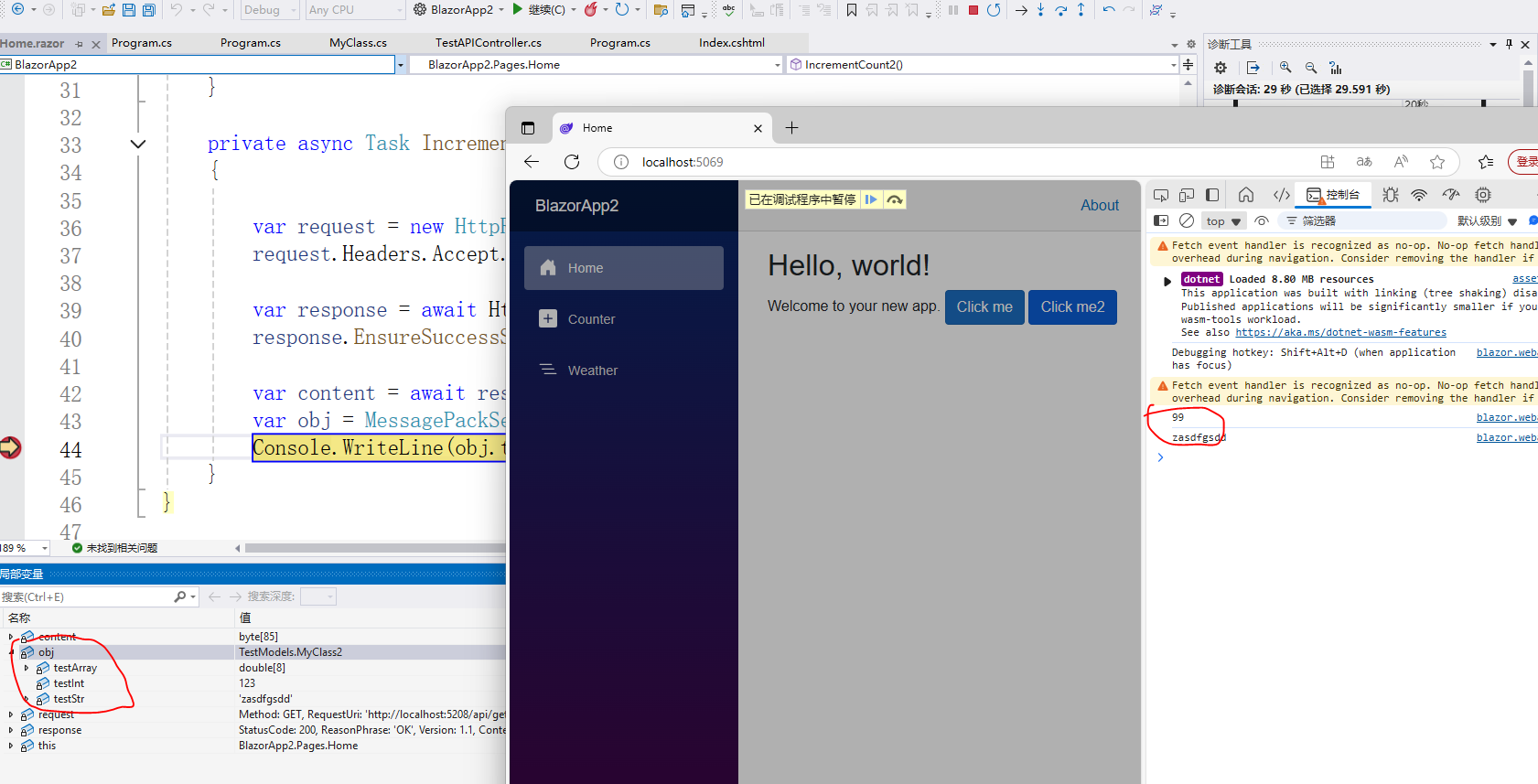

运行服务端程序和Blazor程序，点击Home页面下的按钮并在断点以及控制台查看效果。

源码下载
